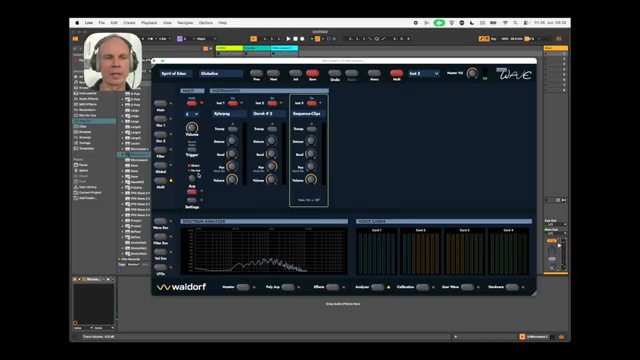

WaldorfMusicChannel’s Microwave 1 Plug-in v2: Hybrid Synthesis Reimagined

Version 2’s most significant architectural leap is the expansion from 8 to up to 32 voices, implemented via a virtual ‘voice card’ system. This mirrors the original hardware’s modular voice board concept, adding voices in blocks of eight to maintain the micro-timing quirks and liveliness that defined the hardware’s sound. Rather than simply increasing the voice count digitally, Waldorf simulates the actual PCB stacking, preserving the subtle timing variations and controller interactions between cards.

The workflow impact is substantial: users can dynamically allocate more voice cards for complex multis or polyphonic arpeggiators, scaling the instrument’s resources as needed. The approach is not just about raw polyphony, but about emulating the original’s architectural behavior within a software environment, aiming to keep the sonic DNA intact even as the instrument evolves for current production demands.

Version 2 introduces new playback modes—Round Robin and Random Robin—that radically expand sound generation and sequencing flexibility. These modes allow layered or multi-part patches to cycle or randomly distribute notes and triggers across instrument parts, creating evolving textures and dynamic performances. The demonstration highlights how each instrument layer can be triggered in order or at random, reminiscent of features in Waldorf’s Iridium and Quantum lines.

Adding to this, the polyphonic arpeggiator—available both globally and per part—enables intricate, polyrhythmic structures. Users can set individual arpeggiator algorithms, step lengths, and modes across parts, leading to complex interlocking patterns. The combination of advanced trigger modes and flexible arpeggiation positions the Microwave 1 Plug-in as a deeply creative tool for both studio sequencing and live improvisation.

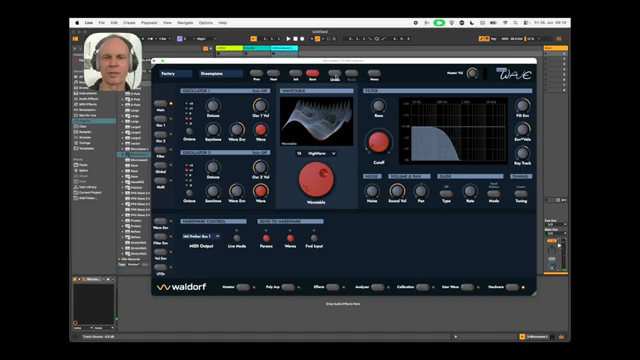

Editing is streamlined with the addition of multi-level undo/redo, accessible via a hoverable history that lists all recent parameter changes. This allows users to non-destructively experiment with patch edits, rolling back or reapplying complex chains of tweaks—an essential feature for deep synthesis work. Multi-editing of instrument parts becomes far more intuitive; users can now adjust parameters across all parts simultaneously with a shift-key gesture or by toggling a dedicated mode, saving time when sculpting layered sounds.

Importantly, Waldorf also introduces relative and absolute multi-editing: edits can either set all parts to the same value or preserve inter-part relationships. This is particularly useful for nuanced control over parameters like filter cutoff or envelope times across a multi, and the undo system logs these as single, coherent steps. The workflow improvements are designed to support fast experimentation and intricate sound design without menu-diving or repetitive parameter entry.
