Pittsburgh Modular Synthesizers: Voltage Lab 2 Dynamics Controllers – Analogue Versatility Unleashed

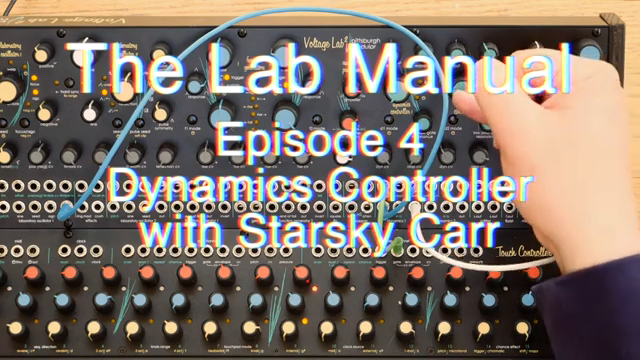

The Voltage Lab 2’s dynamics controllers are pitched as more than just VCAs—they’re a hybrid beast, combining voltage-controlled amplification, low-pass gate behaviour, and classic filtering all in one module. This design allows users to move fluidly between simple amplitude control and more nuanced timbral shaping, depending on the patching and mode selected. The video opens with a clear demonstration of these roles, showing how the controllers can act as straightforward amplifiers or morph into filter-latched low-pass gates at the flick of a switch.

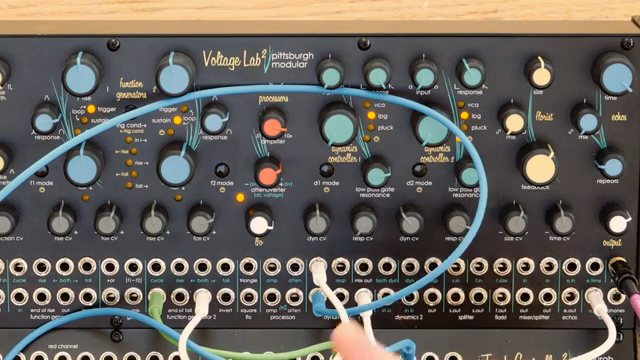

What sets these dynamics controllers apart is their dual-channel architecture, each with two inputs, effectively doubling as a mixer. This flexibility means you can blend multiple sources or oscillators before sculpting the output with the dynamics section’s various modes. The walkthrough highlights how, in its simplest form, the module behaves like a traditional VCA, but with the added bonus of organic response curves and filter resonance for deeper sound design.

Diving deeper, the walkthrough explores the unique response characteristics of the dynamics controllers in different modes. In low-pass gate mode, amplitude and filter cutoff are linked, creating that signature percussive decay and natural envelope reminiscent of classic West Coast synthesis. The resonance control becomes especially useful here, allowing for more pronounced filter sweeps and sonic movement, as evidenced by the frequency analysis shown in the video.

Switching to pluck mode, the module offers a distinct response curve, bypassing the need for dynamic CV input and instead generating its own envelope. This versatility lets users quickly jump between snappy, percussive plucks and more sustained, filter-driven sounds. The video makes it clear that the dynamics controllers are designed to respond musically to both manual tweaks and external modulation, giving patchers a wide palette of expressive options.

The video highlights how pairing the dynamics controllers with the onboard function generators unlocks even more creative potential. By routing envelopes or LFOs from the function generators into the dynamics CV inputs, users can modulate amplitude, filter cutoff, or both simultaneously. This approach is demonstrated in both VCA and low-pass gate modes, showing how modulation can transform a basic sound into something far more dynamic and expressive.

What’s particularly interesting is the way the function generators can be split to control both dynamics channels at once, enabling parallel processing or stereo-style effects. The walkthrough underscores that this setup mimics classic subtractive synthesis workflows, but with the added twist of Pittsburgh Modular’s unique response curves and organic behaviour. It’s a reminder that the Voltage Lab 2 isn’t just about static signal paths—it thrives on modulation and interaction.

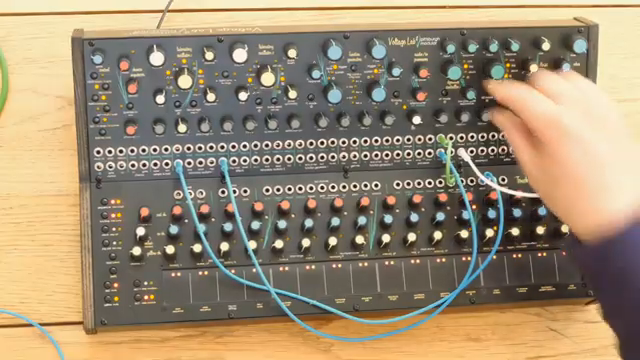

The final segment of the walkthrough focuses on the performance capabilities of the dynamics controllers. By manipulating the green knob and experimenting with signal routing, the video demonstrates how users can achieve long releases, subtle filtering, and evolving textures—all without resorting to external envelopes or complex patching. This hands-on approach is ideal for live performance, where quick adjustments and organic responses are key.

While the examples are intentionally simple, the underlying message is clear: the dynamics controllers are designed for real-time sound shaping and creative layering. Whether you’re crafting percussive arps or slowly morphing drones, the module responds musically to both manual and CV control. Pittsburgh Modular’s emphasis on playable, performance-friendly design shines through, making the Voltage Lab 2 a compelling option for those who value hands-on interaction in their modular rigs.
