Moog Music’s Muse Mod Oscillator: Analog Modulation Muscle for Modern Patches

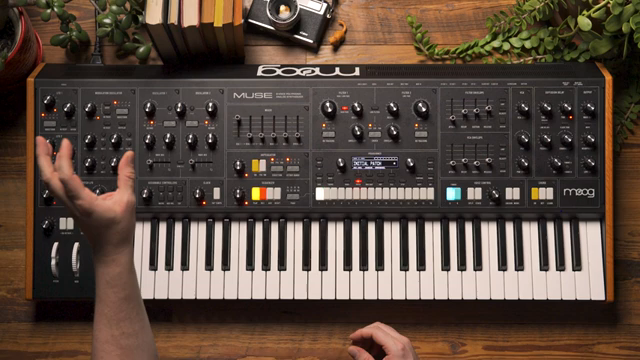

The Modulation Oscillator in the Moog Muse isn’t your garden-variety LFO. As Moog points out, it’s designed as a per-voice analog modulation source, meaning each voice gets its own independent mod oscillator. This is a significant departure from global LFOs, offering more nuanced and organic modulation across polyphonic patches.

But the Mod Oscillator doesn’t stop at slow sweeps. Moog demonstrates that it can be pushed into audio rates, effectively acting as a third oscillator in the mixer. This opens up classic three-oscillator patch territory, reminiscent of the Minimoog Model D, for those seeking extra weight or detuned thickness in their sounds.

Moog’s demo makes it clear that the Mod Oscillator isn’t limited to gentle movement. With the right settings, it can deliver everything from a classic, subtle vibrato to extreme pitch sweeps that verge on sound effects. The analog nature ensures that phase relationships between voices are never static, adding a living, breathing quality to the modulation.

When applied to filter cutoff, the range is equally broad. Moog shows how you can move from understated filter animation to dramatic sweeps, all while maintaining independent phase per voice. This unpredictability is a hallmark of analog polyphony and is front-and-centre in the Muse’s approach to modulation.

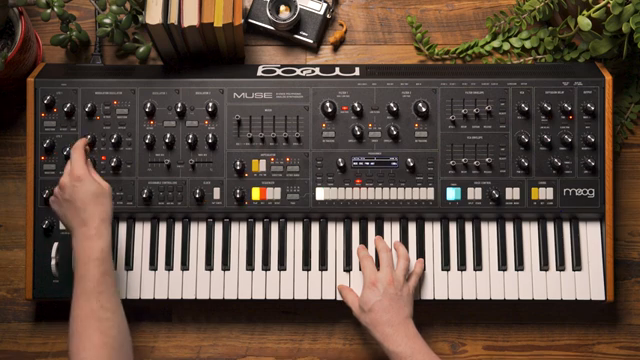

The Mod Oscillator’s reach extends to pulse width modulation (PWM) for Oscillators 1 and 2, provided their wave mix is set to pulse. Moog demonstrates how pushing the modulation deep enough can thin the pulse to silence, while more restrained settings yield classic PWM movement—a staple for rich, animated timbres.

Beyond the oscillators, the Mod Oscillator can modulate the VCA level for tremolo effects, or, when pan is engaged, move the voice position across the stereo field. This allows for dynamic spatial effects and rhythmic movement, all under analog control. The addition of keyboard reset and unipolar mode further refines how these modulations behave, offering both consistency and creative asymmetry.

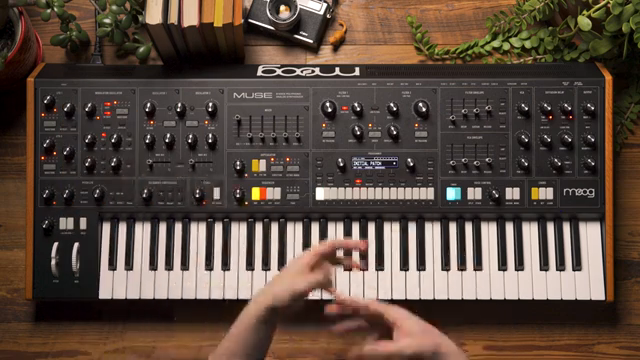

One of the Muse’s most intriguing traits is the organic phase relationship between voices, thanks to each having its own mod oscillator. Even with keyboard reset engaged, phase drift returns over time, ensuring that textures remain lively and unpredictable. Unipolar mode lets users push parameters only in one direction, while keyboard tracking at sub-audio rates introduces note-dependent LFO speeds—a clever trick for evolving tremolo or filter effects across the keyboard.

At audio rates, the Mod Oscillator transforms into a full-fledged sound source, capable of being tuned and mixed alongside the main oscillators. Moog showcases sine, saw, ramp, square, and noise waves, and demonstrates audio-rate FM by modulating oscillator pitch. The ability to modulate modulation amounts with envelopes or LFOs adds yet another layer, making the Mod Oscillator a deep well of analog movement and complexity for adventurous sound designers.
