ALM TV’s QUAID GIGASLOPE: Four Channels of Modular Mayhem

The QUAID GIGASLOPE from ALM / Busy Circuits is introduced as a four-channel, multi-mode modulator, expanding on the design philosophy of their earlier Megaslope. Each channel—referred to as a slope—can function as a multi-stage envelope, a flexible LFO, or a sequencer, with the ability to quantise and apply per-step slides. This versatility is not just theoretical; the video demonstrates immediate patching into a modular setup, using the ASQ1 to trigger slope 1 in envelope mode and modulating the VCA of Akemi’s Castle.

The GIGASLOPE’s design is clearly aimed at modular users who want both structure and improvisational freedom. The module’s four slopes can operate independently or in tandem, allowing for overlapping or entirely distinct modulation ranges. The hands-on interface, with dedicated controls for level, time, and curve per stage, means you’re never far from sculpting a modulation shape that fits your patch. ALM’s approach here is refreshingly menu-free, keeping the workflow tactile and immediate.

Each channel of the GIGASLOPE boasts up to 13 freely configurable stages, enabling the creation of envelopes and sequences that can be as simple or as convoluted as you like. The video shows how stages can be added or adjusted on the fly using the start, end, and arrow buttons, with level and time controls providing precise shaping. The curve control per stage lets you morph between linear, exponential, and logarithmic responses, giving each segment its own character.

This level of control opens up a world of dynamic modulation possibilities. For example, the video demonstrates layering a slow rise after a decay, followed by a smooth fall—all within a single envelope. The output range can be toggled between unipolar and bipolar voltages, and the module’s normalled trigger inputs allow for clever chaining or independent triggering of slopes. The shared stage controls mean that tweaks can affect multiple slopes if they share the same stages, which is a boon for creating evolving, interconnected modulations.

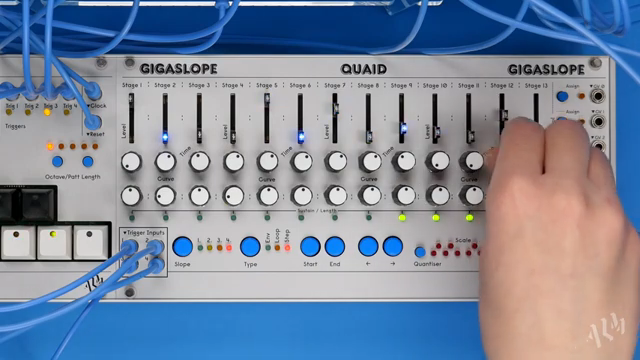

The GIGASLOPE isn’t just about raw modulation—it’s also built for musical integration. Built-in quantisation allows you to constrain output voltages to specific scales, making it ideal for melodic step sequencing. The quantiser is easily accessed via a dedicated button, with a range of scales selectable and the ability to scroll through them quickly. Slides between steps remain smooth even after quantisation, ensuring musical transitions.

Trigger outputs are another highlight. Each slope offers end-of-stage (EOS) and end-of-cycle (EOC) triggers, which can be patched to fire off percussion or other events in sync with your modulation. The video shows these outputs triggering a tom sound, with EOS producing a trigger at the end of each stage and EOC at the end of the entire cycle. Manual and external reset options further enhance performance flexibility, allowing you to realign sequences on the fly—a thoughtful touch for live or generative setups.

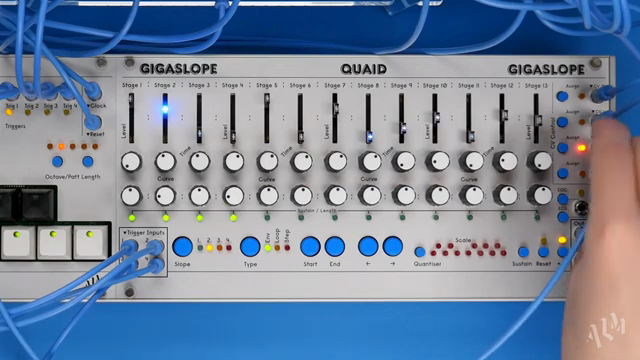

Where the GIGASLOPE really shines is in its ability to generate complex, evolving soundscapes through layering and interaction between channels. The video walks through examples of assigning CV to various parameters, such as decay time or stage level, using external sources like random voltages or LFOs. Each CV input can be freely assigned per slope, allowing for unique modulation routings and decoupling even when slopes share physical controls.

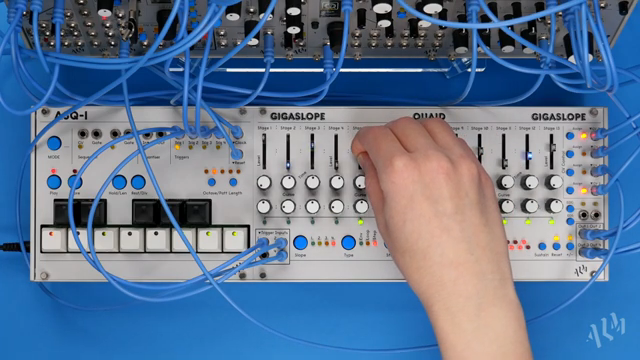

Cross-channel modulation and self-patching are encouraged by the module’s architecture. The demonstration includes modulating slide amounts in a sequence with random gates, and using multiple slopes to control different aspects of a synth voice. This opens up a playground for happy accidents and unexpected results—ideal for those who like their modular patches to surprise them as much as they control them.
